# My First Block

{% hint style="danger" %}

#### **Resourcepack hosting**

Remember to **decide** a [**resourcepack hosting**](https://itemsadder.devs.beer/japanese/plugin-usage/resourcepack-hosting) method **before** you **start**.\
I **advise** you to use **self-host** which is **easier** and **faster**, but you can also use **Dropbox** and similar\\
{% endhint %}

### Configuration file

{% hint style="warning" %}
This is an example block (remember to change `myitems` namespace to the one you want).
{% endhint %}

For example I created a **file** which will contain all my **custom blocks.**\
I created it in the folder: `contents/myitems/configs/`

I start creating a simple block called `red_block` in the file `blocks.yml`**.**

{% code title="ItemsAdder/contents/myitems/configs/blocks.yml" %}

```yaml
info:
  namespace: myitems
items:
  red_block:
    display_name: Red Block
    permission: red_block
    resource:
      material: PAPER
```

{% endcode %}

{% hint style="warning" %}
It's very important to use a **non placeable** vanilla **material**. For example **`PAPER`**.\
If you use a block (like `STONE` or `DIRT`) it will result a bit glitchy when placed.
{% endhint %}

### Creating the textures files

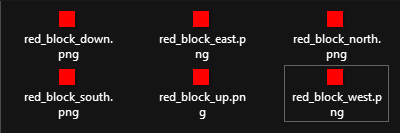

To do that you have to put the `.png` textures file inside the correct folder.

In this case your **namespace** is `myitems` so you have to put them in this folder:\
`contents/myitems/textures/block/`

<details>

<summary>Alternative textures location</summary>

Alternatively you can put them in this folder too:\
`contents/myitems/resourcepack/assets/myitems/textures/block/`

Read more here: [folders structure](https://itemsadder.devs.beer/japanese/plugin-usage/configs-and-resourcepack#why-different-folder-structures-choices)

</details>

<figure><img src="https://2228257718-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Faipc4QQKwVS0w1Q604ya%2Fuploads%2Fgit-blob-8d14ba7be912a62990fb1574c22e8ed9e11f3f1f%2Fred_block_textures_preview.png?alt=media" alt=""><figcaption></figcaption></figure>

### Applying the textures files to your item

Now open `blocks.yml` file again and add the `resource` part as I did.\
As you can see I set `generate: true` and I set the textures for the item.\
This tells the plugin to generate the 3D model automatically using your texture.

```yaml
info:
  namespace: myitems
items:
  red_block:
    display_name: Red Block
    permission: red_block
    resource:
      generate: true
      material: PAPER
```

### Using different texture for each face

{% hint style="warning" %}
**Important**: keep the correct cardinal directions order as shown in the example.
{% endhint %}

```yaml
info:
  namespace: myitems
items:
  red_block:
    display_name: Red Block
    permission: red_block
    resource:
      generate: true
      material: PAPER
      textures:
        - block/red_block_down.png
        - block/red_block_east.png
        - block/red_block_north.png
        - block/red_block_south.png
        - block/red_block_up.png
        - block/red_block_west.png
```

### Using the same texture for each face

```yaml
info:
  namespace: myitems
items:
  red_block:
    display_name: Red Block
    permission: red_block
    resource:
      generate: true
      material: PAPER
      texture: block/red_block.png
```

### Adding the block placing functionality

You have to add the `specific_properties` attribute.

```yaml
info:
  namespace: myitems
items:
  red_block:
    display_name: Red Block
    permission: red_block
    resource:
      generate: true
      material: PAPER
      texture: block/red_block.png
    specific_properties:
      block:
        placed_model:
          type: REAL_NOTE
          break_particles: ITEM
```

## Getting the block ingame

Run `/iaget red_block` to get the item.

![](https://2228257718-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Faipc4QQKwVS0w1Q604ya%2Fuploads%2Fgit-blob-f3b6413a75778e94df69437267a7f914132c4790%2Fimage_\(92\).png?alt=media)

![](https://2228257718-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Faipc4QQKwVS0w1Q604ya%2Fuploads%2Fgit-blob-d88cac5eac9ad55f6f2dc613900c87c3880bfcca%2Fimage_\(91\).png?alt=media)

![](https://2228257718-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Faipc4QQKwVS0w1Q604ya%2Fuploads%2Fgit-blob-afce331005c612ca303abe71997f217119a1899d%2Fimage_\(93\).png?alt=media)

## Download the complete example

{% embed url="<https://addon.devs.beer/toolbox/assets-repository/red_block>" %}

## Block loot

```yaml
info:
  namespace: myitems
items:
  red_block:
    display_name: Red Block
    permission: red_block
    resource:
      generate: true
      material: PAPER
      texture: block/red_block.png
    specific_properties:
      block:
        drop_when_mined: false # IMPORTANT! To avoid duplication
        placed_model:
          type: REAL_NOTE
          break_particles: ITEM


loots: # Here the custom loots list
  blocks:
    ruby_ore: # Here your custom block loot
      type: myitems:red_block
      biomes:
        - PLAINS
        - SUNFLOWER_PLAINS
        - MOUNTAINS
      items:
        drop1: # Here the dropped item
          item: DIAMOND
          min_amount: 1
          max_amount: 2
          chance: 100 # Percentage
```
